Detection ROC curves
You run a companion search over a grid of positions and fluxes, and it returns a best candidate with a \(\Delta\chi^2\) of, say, 20. Is it real? And if the search finds nothing convincing, how faint a companion could it have found? Both questions have a frequentist answer that you can compute by simulation for your own observation and search grid, and this page shows how, with virgil.detection.
Three terms carry the whole page. The false-alarm probability (FAP) of a threshold is the fraction of companion-free observations in which the search would still return a statistic at or above that threshold. For a detection, the FAP of the observed value is the probability that noise alone would have produced a candidate at least as strong somewhere on the grid: it is the p-value of the search. The completeness, also called the true-positive rate, is the fraction of real companions of a given flux and separation that the search finds above the threshold. A ROC curve (receiver operating characteristic) plots completeness against FAP as the threshold slides from strict to loose: a strict threshold gives few false alarms but misses faint companions, a loose one finds more companions but also more false alarms, and the curve shows the whole trade-off at once.
You should come away with three things. First, the look-elsewhere effect: Wilks's theorem, which turns \(\Delta\chi^2\) into a significance, is right for one position chosen in advance, but the best of hundreds of positions is much larger than any one of them, so a search must take its detection threshold from simulations of companion-free data over the same grid. Second, what to quote for a detection: the empirical FAP of the observed statistic, with its uncertainty. Third, what to quote for a non-detection: the contrast at which the search is 50% and 90% complete at a stated FAP, next to the Absil and Ruffio limits of the contrast limits tutorial.
Setup
We simulate the 7-hole NIRISS aperture mask at 4.3 µm with nrm_oidata, which gives 21 squared visibilities with errors of 0.01 and 35 closure phases with errors of 0.5°. Its longest baseline is about 5.3 m, so its resolution \(\lambda/B\) is about 170 mas. The star is a point source, so the scene without a companion, which we call the null scene, is a BinaryModelCartesian with companion flux zero. That is also the null hypothesis that every statistic on this page tests: the companion model with its flux set to zero.
The search grid covers ±120 mas in both coordinates in steps of 16 mas, about \(\lambda/(10B)\). That is fine enough that a companion lying between grid points loses at most a few per cent of its \(\Delta\chi^2\) and is found close to its true position; a much coarser grid can place a companion's best match on the wrong grid point. The even number of points keeps the star's own position, where a companion cannot be told apart from the star, off the grid. The flux axis has 32 values spaced logarithmically from \(3\times10^{-4}\) to \(3\times10^{-2}\) (fluxes are always companion/primary). It plays two roles: it seeds the optimizer that refines the best flux at each position, and it is the prior of the log Bayes factor, which is then uniform in log flux between its ends. Finally we fix the FAP at which we will claim a detection: 0.135%, the one-sided Gaussian tail at 3σ. It is one-sided because a companion's flux cannot be negative, so only upward fluctuations count; the often quoted 0.27% is the two-sided value.
import time
import jax
import jax.numpy as jnp
import numpy as onp
from scipy import stats
from virgil.coverage import nrm_oidata
from virgil.detection import (
detection_statistics,
gaussian_null,
injection_grid,
injection_recovery,
local_nsigma,
rescale_errors,
)
from virgil.grid_fit import laplace_flux_uncertainty_grid, optimized_flux_grid
from virgil.limits import absil_limits, flux_to_delta_mag, ruffio_upperlimit
from virgil.models import BinaryModelCartesian
from virgil.plotting import (
plot_completeness,
plot_contrast_curve,
plot_null_distribution,
plot_roc,
set_style,
)
set_style() # the figure style used throughout the docs
template = nrm_oidata() # 21 V² and 35 closure phases, no values yet
null_scene = BinaryModelCartesian(dra=0.0, ddec=0.0, flux=0.0) # star alone
grid = {
"dra": jnp.linspace(-120.0, 120.0, 16), # mas, steps of 16 mas
"ddec": jnp.linspace(-120.0, 120.0, 16),
"flux": jnp.geomspace(3e-4, 3e-2, 32),
}
FAP = stats.norm.sf(3.0) # 0.135%: the one-sided tail at 3 sigma
print(
f"{template.vis.size} V² and {template.phi.size} closure phases; "
f"{grid['dra'].size * grid['ddec'].size} positions × "
f"{grid['flux'].size} fluxes; FAP = {FAP:.3%}"
)
21 V² and 35 closure phases; 256 positions × 32 fluxes; FAP = 0.135%
A candidate
Here is the observation we want to judge. We simulate it with a companion of flux \(5\times10^{-3}\) (Δmag 5.75) at 70 mas and position angle 60°, plus noise drawn from the errors, and search it with detection_statistics. The search returns the best companion's position and flux and three statistics, each measuring how strongly the data prefer a companion to none. \(\Delta\chi^2\) is twice the gain in log likelihood of the best companion on the grid over no companion, with its flux refined and constrained to be non-negative. The log Bayes factor \(\log B\) is the natural log of the likelihood ratio averaged over the grid, an evidence for "a companion somewhere on the grid" against "no companion". The maximum SNR is the largest best-fit flux divided by its uncertainty, over positions.
local_nsigma converts \(\Delta\chi^2\) into a significance with Wilks's theorem. It is a local significance: the one the candidate would have if we had looked at that single position only, decided before seeing the data.
truth = BinaryModelCartesian(dra=60.6, ddec=35.0, flux=5e-3) # 70 mas, PA 60°
observed = template.with_model(truth, key=jax.random.PRNGKey(2026))
obs = detection_statistics(BinaryModelCartesian, observed, grid)
print(
f"best companion at ΔRA = {float(obs['dra']):.0f} mas, "
f"ΔDec = {float(obs['ddec']):.0f} mas, flux = {float(obs['flux']):.2e} "
f"(truth: 60.6 mas, 35.0 mas, 5.00e-03)\n"
f"Δχ² = {float(obs['delta_chi2']):.1f} "
f"(local significance {float(local_nsigma(obs['delta_chi2'])):.1f}σ), "
f"log B = {float(obs['log_bayes_factor']):.1f}, "
f"max SNR = {float(obs['max_snr']):.1f}"
)
best companion at ΔRA = 88 mas, ΔDec = 40 mas, flux = 4.85e-03 (truth: 60.6 mas, 35.0 mas, 5.00e-03)
Δχ² = 31.8 (local significance 5.6σ), log B = 11.0, max SNR = 5.6
Simulating the search
To learn how often noise alone gives a \(\Delta\chi^2\) that large, and how often a real companion is found, we repeat the whole search on simulated observations. injection_recovery does this in one call. It simulates n_null companion-free observations, the null draws, with Gaussian noise from the template's errors (gaussian_null). It also simulates one observation per companion in injections, here laid out by injection_grid: 4 separations from 40 to 100 mas times 8 fluxes from \(10^{-3}\) to \(3\times10^{-2}\), each at 40 random position angles. Every simulation is searched exactly as the real data were, by one compiled function, and the result is a DetectionMC, a plain NumPy container from which everything below is computed.
We use 10,000 null draws, so that about 13 of them lie above the 0.135% threshold and pin it down; draw_batch=8 searches eight simulations at once, which is faster on a CPU. A larger run can be split over cluster array jobs with different seeds: save each result and merge them with DetectionMC.concatenate.
FLUXES = onp.geomspace(1e-3, 3e-2, 8)
injections = injection_grid([40.0, 60.0, 80.0, 100.0], FLUXES, n_pa=40, key=1)
start = time.perf_counter()
mc = injection_recovery(
BinaryModelCartesian,
null_scene,
template,
grid,
key=0,
n_null=10_000,
injections=injections,
draw_batch=8,
)
print(
f"{mc.n_null} null and {mc.n_injected} injected searches "
f"in {time.perf_counter() - start:.0f} s"
)
injection_recovery: 0%| | 0/177 [00:00<?, ?it/s]
10000 null and 1280 injected searches in 834 s
The look-elsewhere effect

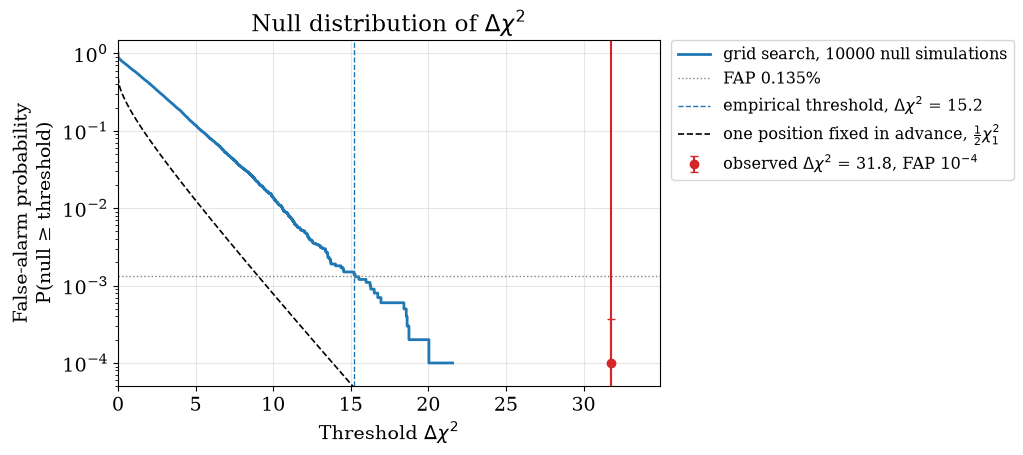

The plot shows, for every threshold on the x-axis, the fraction of the 10,000 companion-free searches whose \(\Delta\chi^2\) reached it: the false-alarm probability of that threshold. The dashed black curve is what Wilks's theorem predicts at a single position fixed in advance. There, \(\Delta\chi^2\) is zero half the time (whenever the best flux would be negative) and follows \(\chi^2_1\) otherwise, so the FAP of a threshold is \(\frac{1}{2}P(\chi^2_1 \geq \Delta\chi^2)\).
The grid search's curve lies far above it. Each of the 256 positions is a fresh chance for noise to mimic a companion, and the search reports the best of them, which is larger than any single one; neighbouring positions are correlated, so the effect is smaller than 256 independent tries would give, but still large. The dotted horizontal line is our FAP of 0.135%. Wilks's curve crosses it at \(\Delta\chi^2 = 9\), the local 3σ, while the simulations cross it at the much higher empirical threshold, the dashed blue line. The red point is our candidate: its \(\Delta\chi^2\), and its FAP with a 95% interval.
plot_null_distribution(
mc, "delta_chi2", observed=obs["delta_chi2"], fap=FAP
);
What to quote for a detection
Now the numbers behind the plot. threshold gives the \(\Delta\chi^2\) that 0.135% of the null searches exceed, with a bootstrap error from the finite number of draws. false_alarm_probability gives the FAP of any value as \((k+1)/(n+1)\), where \(k\) of the \(n\) null draws reach it, with an exact binomial 95% interval. We print the FAP of Wilks's local 3σ threshold, which shows how optimistic the local significance is over a grid, and the FAP of the candidate. The candidate's FAP converts back to an equivalent global significance through the one-sided Gaussian tail: the significance of the search as a whole. If no null draw reaches the candidate, its FAP is only an upper limit, set by the number of draws, and its global significance a lower limit; more null draws would sharpen both.
For a detection, quote the observed \(\Delta\chi^2\), its empirical FAP with the interval and the number of null draws, and the global significance it implies, and say what was simulated: the grid, the noise model and the errors. The local Wilks significance may be given too, but always labelled local.
threshold, error = mc.threshold("delta_chi2", FAP)
wilks_fap = mc.false_alarm_probability("delta_chi2", 9.0)[0]
fap, low, high = mc.false_alarm_probability("delta_chi2", obs["delta_chi2"])
bound = "≥ " if low == 0.0 else "" # no null draw reached the candidate
print(
f"threshold at FAP {FAP:.3%}: Δχ² = {threshold:.1f} ± {error:.1f} "
f"(Wilks, at one position: 9)\n"
f"Wilks's Δχ² = 9 has an FAP of {wilks_fap:.1%} over the grid\n"
f"candidate: Δχ² = {float(obs['delta_chi2']):.1f}, FAP = {fap:.2g} "
f"(95%: {low:.2g} to {high:.2g}), global significance "
f"{bound}{stats.norm.isf(fap):.1f}σ "
f"(local {float(local_nsigma(obs['delta_chi2'])):.1f}σ)"
)
threshold at FAP 0.135%: Δχ² = 15.2 ± 0.9 (Wilks, at one position: 9)
Wilks's Δχ² = 9 has an FAP of 2.2% over the grid
candidate: Δχ² = 31.8, FAP = 0.0001 (95%: 0 to 0.00037), global significance ≥ 3.7σ (local 5.6σ)
ROC curves: which statistic?

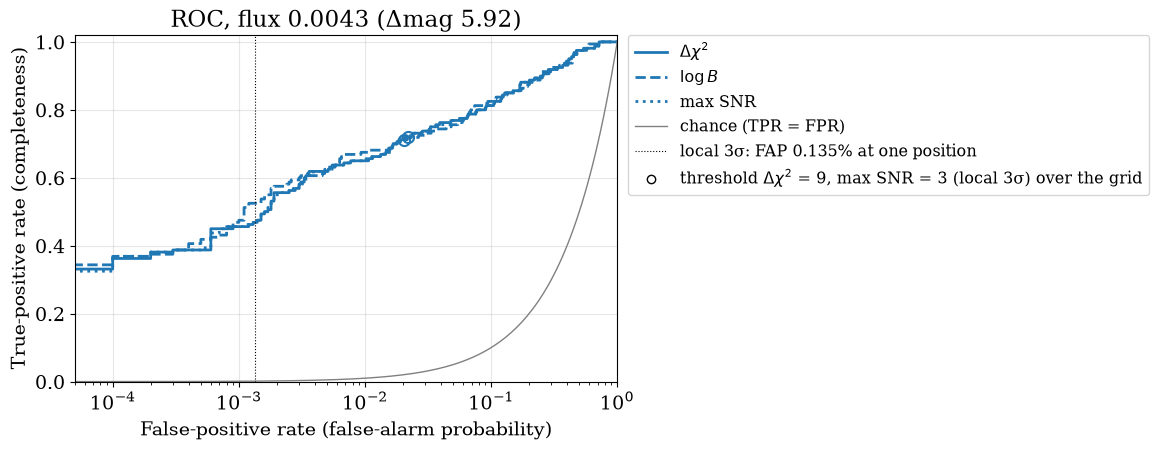

Every simulation gives all three statistics, so their ROC curves can be compared fairly. We draw them for the injections of flux \(4.3\times10^{-3}\) (Δmag 5.9), the fourth of our eight fluxes, at all four separations together. Read each curve as its threshold sliding from strict (lower left) to loose (upper right). The false-positive axis is logarithmic because detections are claimed at small FAPs, and on it the grey chance curve, TPR = FPR, which is what a statistic no better than a coin toss would give, is a curve rather than a straight line. The dotted vertical line is the FAP of 0.135% that Wilks's theorem assigns to a local 3σ, and the circle on each curve marks where its threshold actually equals a local 3σ (\(\Delta\chi^2 = 9\), or an SNR of 3): the horizontal gap between the circle and the line is the look-elsewhere effect again. A ROC curve depends only on how a statistic ranks the simulations, not on its scale, which is why such different statistics can share one plot.
The \(\Delta\chi^2\) and maximum-SNR curves practically coincide. For a faint companion the log likelihood is nearly quadratic in flux, so at each position \(\Delta\chi^2 \approx \mathrm{SNR}^2\) whenever the best flux is positive, and both statistics pick the same best position; the maximum SNR is then close to \(\sqrt{\Delta\chi^2}\), which ranks the simulations in the same order. The log Bayes factor averages the likelihood over all positions and fluxes instead of taking the best one, so it can rank them differently, and the plot shows whether that helps for this observation.
plot_roc(
mc, ["delta_chi2", "log_bayes_factor", "max_snr"], flux=FLUXES[3]
);
What to quote for a non-detection
After a non-detection the question becomes what the search could have found. completeness counts, for each injected separation and flux, the fraction of injections detected above the calibrated threshold, and contrast_curve interpolates in flux to the contrast at which that fraction reaches a chosen level. These are empirical contrast curves: at the 90% contrast, nine companions out of ten would have been detected at an FAP of 0.135%, look-elsewhere effect included. The table gives them in Δmag at each injected separation (NaN where the injected fluxes do not span that completeness).
sep, flux50 = mc.contrast_curve("delta_chi2", FAP, completeness=0.5)
_, flux90 = mc.contrast_curve("delta_chi2", FAP, completeness=0.9)
print(f"Δmag reached at FAP {FAP:.3%}\nsep (mas) 50% complete 90% complete")
for s, f50, f90 in zip(sep, flux50, flux90):
print(
f"{s:9.0f}{float(flux_to_delta_mag(f50)):14.2f}"
f"{float(flux_to_delta_mag(f90)):14.2f}"
)
Δmag reached at FAP 0.135%
sep (mas) 50% complete 90% complete
40 4.81 4.36
60 5.80 5.21
80 6.09 5.55
100 6.44 5.65

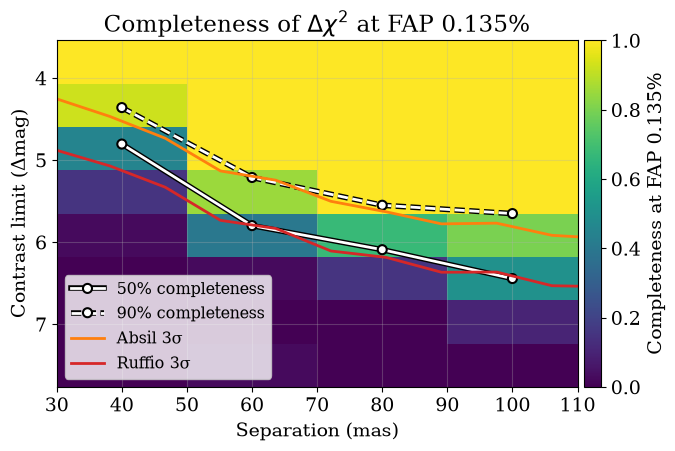

The map shows the completeness behind those curves, cell by cell, with the 50% and 90% curves drawn on it. Over it we draw the Absil and Ruffio limits of a companion-free observation, as in the contrast limits tutorial; they answer different questions. Ruffio's limit, here at the 3σ-equivalent percentile, is a Bayesian upper limit on the flux at each position, given that a companion sits exactly there. Absil's limit, at 3σ, is the flux that a \(\chi^2\) test against the no-companion model rejects at each position. Neither involves a detection threshold or the look-elsewhere effect, and each comes from one noise realisation, so it wanders with the noise, while the completeness curves average over many simulated observations.
For a non-detection, quote the 50% and 90% completeness contrasts at a stated FAP, for example "the search is 90% complete to Δmag X at 80 mas, at a false-alarm probability of 0.135%", together with the grid, the noise model and the number of injections. Absil or Ruffio limits can be given alongside, for comparison with the literature.
blank = template.with_model(null_scene, key=jax.random.PRNGKey(7))
absil = absil_limits(BinaryModelCartesian, blank, grid, sigma=3.0)
best = optimized_flux_grid(BinaryModelCartesian, blank, grid)
sigma = laplace_flux_uncertainty_grid(BinaryModelCartesian, blank, grid, best)
ruffio = ruffio_upperlimit(best, sigma, stats.norm.cdf(3.0))
fig, ax = plot_completeness(mc, "delta_chi2", FAP)
for limit, label, color in [(absil, "Absil 3σ", "C1"), (ruffio, "Ruffio 3σ", "C3")]:
plot_contrast_curve(limit, grid, label=label, color=color, band=False, ax=ax)
ax.legend(loc="lower left", fontsize="small");
When the error bars are wrong
Everything so far assumed that the errors are right, because the null draws were simulated from them. Suppose instead that the real noise is 1.5 times the quoted errors, which is common for calibrated interferometric data. The Gaussian null still simulates the quoted errors, so its threshold is too low, and the true FAP of that threshold, measured on 2000 simulations with the real noise, is far above the nominal value.
Two tools repair this. rescale_errors estimates the factor from the data, scaling the errors so that the null scene has \(\chi^2_r = 1\), separately for the V² and the closure phases; with the rescaled errors, the Gaussian calibration above is valid again. bootstrap_null (noise="bootstrap") does not trust the errors at all: it builds null draws by flipping the signs of the data's own whitened residuals about the null scene, so the draws carry the real noise. The table compares the threshold at an FAP of 1% (looser than 0.135%, so that 2000 draws measure it well) from honest errors, from wrong errors with a Gaussian null, and from wrong errors with a bootstrap null of one companion-free observation, each with the true FAP of its threshold.
real_noise = gaussian_null(null_scene, template, error_scale=1.5)
bad = real_noise(jax.random.PRNGKey(11)) # companion-free, errors too small
truth_mc = injection_recovery( # what the wrong errors really give
BinaryModelCartesian, null_scene, template, grid, key=2,
n_null=2000, noise=real_noise, draw_batch=8,
)
boot_mc = injection_recovery( # calibrated on the data's own residuals
BinaryModelCartesian, null_scene, bad, grid, key=3,
n_null=2000, noise="bootstrap", draw_batch=8,
)
factors = rescale_errors(null_scene, bad)[1]
print(
f"rescale_errors factors: V² {factors['vis']:.2f}, "
f"closure phases {factors['phi']:.2f} (truth 1.5)\n"
f"{'threshold at FAP 1% from':<36}{'Δχ²':>6}{'true FAP':>10}"
)
for label, calibration, actual in [
("honest errors, Gaussian null", mc, mc),
("errors 1.5× too small, Gaussian null", mc, truth_mc),
("errors 1.5× too small, bootstrap", boot_mc, truth_mc),
]:
t = calibration.threshold("delta_chi2", 0.01)[0]
p = actual.false_alarm_probability("delta_chi2", t)[0]
print(f"{label:<36}{t:6.1f}{p:10.1%}")
injection_recovery: 0%| | 0/32 [00:00<?, ?it/s]
injection_recovery: 0%| | 0/32 [00:00<?, ?it/s]
rescale_errors factors: V² 1.31, closure phases 1.78 (truth 1.5)
threshold at FAP 1% from Δχ² true FAP
honest errors, Gaussian null 10.6 1.0%
errors 1.5× too small, Gaussian null 10.6 14.5%
errors 1.5× too small, bootstrap 23.8 0.9%
Summary
A companion search reports the best of many positions, so its statistic must be calibrated against simulated companion-free searches over the same grid; Wilks's theorem, through local_nsigma, gives only the local significance at one position, and over a grid it overstates the significance. injection_recovery runs the null and injected searches in one call, and its DetectionMC gives thresholds, false-alarm probabilities, ROC curves, completeness maps and contrast curves, which plot_null_distribution, plot_roc and plot_completeness draw.
For a detection, quote the observed \(\Delta\chi^2\) with its empirical false-alarm probability, its 95% interval and the number of null draws, and the global significance that FAP implies; the Wilks significance only if labelled local. For a non-detection, quote the contrasts at which the search is 50% and 90% complete at a stated FAP (0.135%, the one-sided 3σ, is a common choice), with Absil or Ruffio limits alongside if you like.
Three caveats. The nuisance parameters, here the null scene itself, are held fixed at their values for the real data rather than refitted for every simulation. The grid must be fine enough that companions are found near their true positions, and the calibration holds only for the grid it was simulated on. And a Gaussian null is only as good as the error bars: if they may be wrong, rescale them with rescale_errors or calibrate with a residual bootstrap (noise="bootstrap"), keeping in mind that the bootstrap needs the null scene to fit the data.
