Nonparametric disks: a planet in a gap between inclined rings
Provisional
May change in any 0.4.x release without a deprecation cycle.
A MultipoleDisk describes a disk, ring or halo by a radial brightness profile \(I_0(r)\) in the plane of the disk, tilted by inc and rotated by pa. Its visibility is the Hankel transform of the profile, normalized to one at zero baseline,
with \(q'\) the baseline's spatial frequency in the disk plane. The profile can be a parametric ring or a free function: a Gaussian process, whose log-intensity at \(n\) radial nodes is \(\sigma L z\), with \(LL^\top\) a Matérn correlation matrix of length \(\ell\) and \(z \sim \mathcal N(0, I)\) the free parameters, so the intensity is positive for any \(z\). A disk can also be lopsided (azimuthal harmonics) and chromatic (a spectral index, \(I(r,\lambda) = I_0(r)(\lambda/\lambda_0)^{\alpha(r)}\)).
Here we simulate a star with three inclined rings and a planet in a gap, observed with VLTI-like closure phases and squared visibilities. We fit the data twice, once with the family that made them and once with a single Gaussian-process MultipoleDisk, and compare the two. We show how to build a MultipoleDisk scene, how to fit a non-parametric profile, and what the data can and cannot tell the Gaussian process. Both fits are maximum a posteriori (MAP) with a Laplace approximation, with no sampling.
The scene and the data
The star is a 6000 K blackbody point source, and every other flux is relative to it at 3 microns. The three rings are coplanar MultipoleDisks with GaussianRing profiles at 4.5, 10 and 21.5 mas (widths \(\sigma\) of 1.3, 1.5 and 2.4 mas) and blackbody colours of 1500, 900 and 600 K; the outermost has a first-order harmonic, which makes it lopsided. A 1000 K planet sits in the gap between the second and third rings. Ring radii are measured in the disk plane, so we put the planet on the projected major axis, where sky and plane distances agree, at 14.4 mas from the star: \((\Delta\alpha, \Delta\delta) = (-7.2, -12.47)\) mas. The cell prints a deprojection check. The scene function gives one inc and pa to all the rings, and the fits below reuse it.
The data mimic a low-resolution L-band run with the four unit telescopes: nine channels from 2.4 to 3.6 microns and seven hour angles, giving 378 squared visibilities (error 0.01) and 252 closure phases (error 0.5°), or 567 independent data once the closure phases' correlations are counted. The longest baseline gives a half-fringe \(\lambda/2B\) of 2 to 3 mas, so the rings' widths (FWHM 3.1, 3.5 and 5.7 mas) are at or above the resolution and finer structure is not measured. The image shows the truth at 3 microns, East to the left, with the star saturated to show the outer ring and the beam in the corner.
import sys
from pathlib import Path
root = next(
p for p in [Path.cwd(), *Path.cwd().parents] if (p / "src").exists()
)
sys.path.insert(0, str(root / "src"))
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import numpyro.distributions as dist
from virgil import (
BlackBody, GaussianRing, Harmonics, PointSource, MultipoleDisk,
MultipoleKernel, RadialGP, RadialGPFunction, System, fit, gp_priors,
)
from virgil.coverage import vlti_oidata
from virgil.imaging import beam, log_evidence
from virgil.inference import laplace_cov
from virgil.likelihood import whitened_residuals
from virgil.priors import IsotropicInclination
from virgil.plotting import plot_model, plot_residual_map
W0 = 3.0e-6 # reference wavelength, m
def scene(inc, pa, r1, s1, f1, t1, r2, s2, f2, t2, r3, s3, f3, t3,
h_re, h_im, dra, ddec, fp, tp):
"""Star, three coplanar rings and a planet; one inc and pa for the rings."""
def ring(radius, sigma, flux, temp, **kw):
return MultipoleDisk(GaussianRing(radius, sigma), inc=inc, pa=pa, n_r=48,
flux=BlackBody(flux, temp, W0), **kw)
return System(
star=PointSource(flux=BlackBody(1.0, 6000.0, W0)),
ring1=ring(r1, s1, f1, t1),
ring2=ring(r2, s2, f2, t2),
ring3=ring(r3, s3, f3, t3, harmonics=Harmonics(re=h_re, im=h_im)),
planet=PointSource(dra=dra, ddec=ddec, flux=BlackBody(fp, tp, W0)),
)
truth = dict(inc=50.0, pa=30.0, r1=4.5, s1=1.3, f1=0.15, t1=1500.0,
r2=10.0, s2=1.5, f2=0.25, t2=900.0, r3=21.5, s3=2.4, f3=0.5,
t3=600.0, h_re=0.5, h_im=0.2, dra=-7.2, ddec=-12.471, fp=0.04,
tp=1000.0)
truth_model = scene(**truth)
def plane_radius(dra, ddec, inc, pa):
"""Disk-plane radius of a sky offset: rotate to the major/minor axes, de-foreshorten the minor."""
pa_r = np.radians(pa)
major = dra * np.sin(pa_r) + ddec * np.cos(pa_r)
minor = dra * np.cos(pa_r) - ddec * np.sin(pa_r)
return float(np.hypot(major, minor / np.cos(np.radians(inc))))
print("planet: sky separation "
f"{np.hypot(truth['dra'], truth['ddec']):.2f} mas, disk-plane radius "
f"{plane_radius(truth['dra'], truth['ddec'], truth['inc'], truth['pa']):.2f} mas "
f"(rings at {truth['r1']}, {truth['r2']}, {truth['r3']} mas)")
template = vlti_oidata(
wavelengths_m=np.linspace(2.4e-6, 3.6e-6, 9),
hour_angles_h=(-3, -2, -1, 0, 1, 2, 3),
sigma_v2=0.01, sigma_cp_deg=0.5,
)
data = template.with_model(truth_model, key=jax.random.PRNGKey(0))

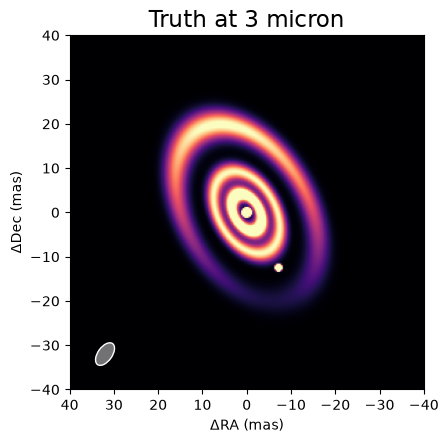

fig, ax = plt.subplots(figsize=(5, 4.6))
FOV = 80 # mas
plot_model(truth_model, fov_mas=FOV, npix=256, ax=ax, saturate=0.99,
beam=beam(data), title="Truth at 3 micron")
plt.show()
stats.py:24: SyntaxWarning: invalid escape sequence '\m'
Calculates the z-score $(\mu - x) / \sigma$ of a value given a mean and standard
stats.py:46: SyntaxWarning: invalid escape sequence '\m'
Calculates the squared Mahalanobis distance $(\mu - x)^\top\Sigma^{-1}(\mu - x)$
planet: sky separation 14.40 mas, disk-plane radius 14.40 mas (rings at 4.5, 10.0, 21.5 mas)
The parametric fit
First we fit the family that made the data: 20 parameters in all, namely the shared geometry, a radius, width, flux and temperature for each ring, the outer harmonic's two components, and the planet's offset, flux and temperature. The priors are the invariant ones: uniform in \(\cos i\) for the inclination (IsotropicInclination), uniform for angles and locations, and log-uniform for scales. We start 5 percent from the truth, as a local optimizer needs, run fit (Levenberg–Marquardt) to the MAP, and take the Laplace covariance with laplace_cov.
The printed \(\chi^2/N\) is on the quoted errors with no rescaling, and is close to 1, as it should be for the family that made the data. The table gives the truth, the MAP and the Laplace standard deviation of every parameter. The widths are the hardest, because the narrowest ring is only a little wider than the half-fringe. A Gaussian approximation is also poor for a scale pressed against its prior edge, which matters for the evidence below.
priors = dict(inc=IsotropicInclination(0, 85), pa=dist.Uniform(-90, 90),
h_re=dist.Uniform(-1, 1), h_im=dist.Uniform(-1, 1),
dra=dist.Uniform(-20, 20), ddec=dist.Uniform(-20, 20),
fp=dist.LogUniform(0.003, 0.3), tp=dist.LogUniform(300, 3000))
for i in (1, 2, 3):
priors |= {f"r{i}": dist.LogUniform(0.5, 40), f"s{i}": dist.LogUniform(0.1, 6),
f"f{i}": dist.LogUniform(0.01, 2),
f"t{i}": dist.LogUniform(300, 3000)}
start = {k: v * (1 + 0.05 * (-1) ** i) for i, (k, v) in enumerate(truth.items())}
par = fit(scene, priors, data, init=start)
names = list(priors)
x_map = np.array([float(par.values[k]) for k in names])
sigma = np.sqrt(np.diag(np.asarray(laplace_cov(x_map, names, scene, data))))
print(f"chi2 = {par.info['chi2'][0]:.0f} for N = {par.info['ndata'][0]} "
f"independent data (chi2/N = {par.info['chi2'][0] / par.info['ndata'][0]:.2f}), "
f"converged: {par.info['converged']}")
print(f"{'':>6}{'truth':>9}{'MAP':>9}{'Laplace sd':>12}")
for k, x, s in zip(names, x_map, sigma):
print(f"{k:>6}{truth[k]:9.3f}{x:9.3f}{s:12.3f}")
chi2 = 572 for N = 567 independent data (chi2/N = 1.01), converged: True
truth MAP Laplace sd
inc 50.000 50.108 0.205
pa 30.000 29.968 0.277
h_re 0.500 0.600 0.049
h_im 0.200 0.229 0.021
dra -7.200 -7.254 0.026
ddec -12.471 -12.488 0.027
fp 0.040 0.041 0.001
tp 1000.000 1021.563 26.289
r1 4.500 4.465 0.072
s1 1.300 1.296 0.169
f1 0.150 0.165 0.015
t1 1500.000 1285.476 71.295
r2 10.000 9.940 0.122
s2 1.500 1.519 0.130
f2 0.250 0.277 0.015
t2 900.000 940.208 29.298
r3 21.500 21.488 0.029
s3 2.400 2.403 0.042
f3 0.500 0.454 0.019
t3 600.000 582.920 9.105
The non-parametric fit
Now the model that does not know about rings. One MultipoleDisk has a RadialGP profile on 48 nodes between 2 and 30 mas, with a Matérn-3/2 length \(\ell = 5\) mas and \(\sigma = 2\) on \(\ln I_0\). Its Harmonics(degree=1, prior=MultipoleKernel(...)) has a first-order amplitude and phase that are Gaussian processes in radius, and its spectral_index is a RadialGPFunction. Limiting the harmonics to first order stops the disk absorbing the planet, a compact, strongly asymmetric source, so the planet keeps its parametric form with the star. gp_priors writes the standard-normal prior of every latent, and the geometry, total disk flux and planet start at the parametric MAP, with the geometry held there.
The hyperparameters are fixed by hand, not fitted. We set them from the scale of this scene, which a real analysis would not know; it would sample them or compare evidences, as in the next section. Here \(\sigma = 2\) is of the order of the true profile's spread in \(\ln I_0\) (about 1.6 between 2 and 30 mas), and the spectral index's \(\sigma = 2.5\) covers the three blackbodies' slopes (\(-1.7\), \(0.35\) and \(3.0\) at 3 microns). A Matérn length is not a feature width: a squared-exponential bump of the same curvature has width \(\ell/\sqrt3\), so \(\ell = 5\) mas is 2.9 mas, which smooths the inner rings (1.3 and 1.5 mas) rather than matching them. The inner edge is at 2 mas, the half-fringe, so the profile cannot hide light in an unresolved core that trades off against the star. The cell prints \(\chi^2/N\) on the quoted errors, the planet's position and flux against the parametric fit and the truth, and the disk flux.
v = par.values
r_in, r_out = 2.0, 30.0
ell_gp = 5.0 # profile correlation length (mas); see the text
disk = MultipoleDisk(
RadialGP(r_in, r_out, sigma=2.0, ell=ell_gp),
harmonics=Harmonics(degree=1, prior=MultipoleKernel(
ell_r=5.0, ell_theta=8.0, sigma=0.5, n=10, r_in=r_in, r_out=r_out)),
spectral_index=RadialGPFunction(r_in, r_out, sigma=2.5, ell=4.0, n=22),
wavel0=W0, inc=v["inc"], pa=v["pa"], n_r=48,
flux=v["f1"] + v["f2"] + v["f3"],
)
gp = System(
star=PointSource(flux=BlackBody(1.0, 6000.0, W0)),
disk=disk,
planet=PointSource(dra=v["dra"], ddec=v["ddec"],
flux=BlackBody(v["fp"], v["tp"], W0)),
)
gp_priors_ = gp_priors(gp) | {
"disk.flux": dist.LogUniform(0.05, 5.0),
"planet.dra": dist.Uniform(-20, 20), "planet.ddec": dist.Uniform(-20, 20),
"planet.flux.ratio": dist.LogUniform(0.003, 0.3),
"planet.flux.temperature": dist.LogUniform(300, 3000),
}
gpfit = fit(gp, gp_priors_, data)
gv = gpfit.values
true_disk_flux = truth["f1"] + truth["f2"] + truth["f3"]
print(f"chi2 = {gpfit.info['chi2'][0]:.0f} for N = {gpfit.info['ndata'][0]} "
f"independent data (chi2/N = {gpfit.info['chi2'][0] / gpfit.info['ndata'][0]:.2f}), "
f"converged: {gpfit.info['converged']}, {gpfit.info['steps']} steps")
print(f"planet offset (dra, ddec) = ({gv['planet.dra']:.2f}, {gv['planet.ddec']:.2f}) mas "
f"(parametric: {v['dra']:.2f}, {v['ddec']:.2f}; "
f"truth {truth['dra']:.2f}, {truth['ddec']:.2f})")
print(f"planet flux at 3 micron = {gv['planet.flux.ratio']:.3f} of the star "
f"(parametric: {v['fp']:.3f}; truth {truth['fp']:.3f})")
print(f"disk flux at 3 micron = {gv['disk.flux']:.2f} "
f"(parametric rings: {v['f1'] + v['f2'] + v['f3']:.2f}; truth {true_disk_flux:.2f})")
chi2 = 648 for N = 567 independent data (chi2/N = 1.14), converged: True, 64 steps
planet offset (dra, ddec) = (-7.25, -12.50) mas (parametric: -7.25, -12.49; truth -7.20, -12.47)
planet flux at 3 micron = 0.041 of the star (parametric: 0.041; truth 0.040)
disk flux at 3 micron = 0.89 (parametric rings: 0.90; truth 0.90)
The evidence, parametric against Gaussian process
We compare the two fits with Laplace evidences. For the parametric model, \(\log Z \approx -\tfrac12\chi^2 + \log\pi(\hat\theta) + \tfrac d2\log 2\pi + \tfrac12\log\det\Sigma\), and log_evidence gives the equivalent for the Gaussian process's latents, \(-\tfrac12\chi^2 - \tfrac12|z|^2 - \tfrac12\log\det(I + J^TJ)\). The two share a normalization, so only their difference means anything, and even that is indicative, not a calibrated Bayes factor, for three reasons. The Gaussian-process value holds the geometry (tuned on these data), the planet and the disk flux at their MAP values with no Occam factor, which favours the Gaussian process. The parametric family contains the truth, which no real analysis can assume, and marginalizes all 20 parameters, which favours the parametric model. And the Laplace approximation is rough for the width pressed against its prior edge.
We also refit the Gaussian process with a profile length of 2 mas instead of 5. That compares two fits with the same held parameters, the cleaner use of the evidence, as in MacKay's choice of a hyperparameter.
Code
gpm = gpfit.model
# Laplace evidence of the parametric fit: log L + log prior + (d/2) log 2 pi
# + (1/2) log det Sigma, in the same data normalization as log_evidence.
cov = np.asarray(laplace_cov(x_map, names, scene, data))
chi2_par = float(np.sum(np.asarray(whitened_residuals(par.model, data)) ** 2))
log_prior = sum(float(priors[k].log_prob(par.values[k])) for k in names)
logz_par = (-0.5 * chi2_par + log_prior + 0.5 * len(names) * np.log(2 * np.pi)
+ 0.5 * np.linalg.slogdet(cov)[1])
ell_alt = 2.0
logz = {}
for ell in (ell_gp, ell_alt):
f = gpfit if ell == ell_gp else fit(gp.set("disk.profile.ell", ell), gp_priors_, data)
logz[ell] = float(log_evidence(f, data, path="disk"))
print(f"parametric (20 parameters, Laplace-marginalized): log Z = {logz_par:8.1f}")
for ell, z in logz.items():
print(f"GP (other parameters at MAP), profile length scale {ell:4.2f} mas: log Z = {z:8.1f}"
+ (" (used below)" if ell == ell_gp else ""))
print(f"log Z(ell = {ell_gp:g}) - log Z(ell = {ell_alt:g}) = {logz[ell_gp] - logz[ell_alt]:.1f}; "
f"parametric - GP = {logz_par - logz[ell_gp]:.1f}")
parametric (20 parameters, Laplace-marginalized): log Z = -381.7
GP (other parameters at MAP), profile length scale 5.00 mas: log Z = -414.4 (used below)
GP (other parameters at MAP), profile length scale 2.00 mas: log Z = -412.7
log Z(ell = 5) - log Z(ell = 2) = -1.6; parametric - GP = 32.6
What the data taught the Gaussian process
The parametric model is told where the rings are, so its \(\log Z\) is the higher of the two. The number to look at is the difference between the two length scales, printed above, which is only a couple of nat. That is within what a Laplace evidence conditional on the fitted parameters can support, so the data do not measure the profile's length scale: it is a prior choice, and it sets the posterior's fine structure wherever the data are silent. Neither length matches the rings: \(\ell/\sqrt3\) is 2.9 mas and 1.2 mas against widths of 1.3, 1.5 and 2.4 mas. Nor can either fit resolve scales below the half-fringe of 2 to 3 mas, so any structure the Gaussian-process band shows there, and its behaviour at the inner edge where the profile trades light with the star, is the prior. And the hyperparameters came from the truth's scale, which a real analysis cannot do: a prior much rougher than the scene, such as \(\sigma = 3\) with \(\ell = 1.5\) mas, has a typical slope of \(\ln I_0\) of \(\sqrt3\sigma/\ell \approx 3.5\) nat/mas, against about 0.8 nat/mas rms for the truth.

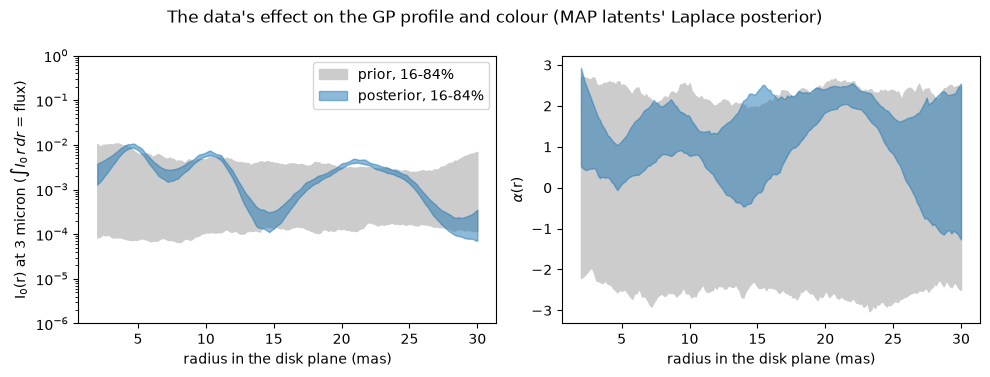

The panels compare the prior of the profile and of the spectral index (16 to 84 percent of draws at the fixed hyperparameters) with draws from the Laplace posterior of the latents, \(\mathcal N(z_0, (I + J^TJ)^{-1})\), the approximation the evidence uses. Only the latents vary, so the bands are narrower than the full posterior.
Code
latents = ["disk.profile.z", "disk.harmonics.z", "disk.spectral_index.z"]
z0 = [np.asarray(gpm.get(p)) for p in latents]
flat0 = jnp.concatenate([jnp.ravel(z) for z in z0])
def residuals(flat):
m, k = gpm, 0
for p, z in zip(latents, z0):
m = m.set(p, flat[k:k + z.size].reshape(z.shape))
k += z.size
return whitened_residuals(m, data)
# Laplace posterior of the latents, N(z0, (I + J^T J)^-1), as log_evidence uses
jac = np.asarray(jax.jacfwd(residuals)(flat0))
chol = np.linalg.cholesky(np.linalg.inv(np.eye(flat0.size) + jac.T @ jac))
rng = np.random.default_rng(0)
draws = np.asarray(flat0) + rng.standard_normal((200, flat0.size)) @ chol.T
rg = np.linspace(r_in, r_out, 200)
def profile_alpha(flat):
"""Surface brightness (unit integral times the disk flux), alpha(r), |I_1|."""
m, k = gpm, 0
for p, z in zip(latents, z0):
m = m.set(p, flat[k:k + z.size].reshape(z.shape))
k += z.size
i0 = m.disk.profile.intensity(rg, 0.1)
i0 = i0 / jnp.trapezoid(i0 * rg, rg) * m.disk.flux
return (i0, m.disk.spectral_index(rg),
jnp.abs(m.disk.harmonics.image_harmonics(rg)[1]))
post_i0, post_al, post_h1 = (
np.asarray(x) for x in jax.vmap(profile_alpha)(jnp.asarray(draws))
)
key = jax.random.PRNGKey(1)
prior_i0 = np.asarray(gpm.disk.profile.draws(key, 200, r=rg, positive=True))
prior_i0 = prior_i0 / np.trapezoid(prior_i0 * rg, rg, axis=1)[:, None] * float(gpm.disk.flux)
prior_al = np.asarray(gpm.disk.spectral_index.draws(key, 200, r=rg))
band = lambda x: np.percentile(x, [16, 84], axis=0)
fig, axes = plt.subplots(1, 2, figsize=(10, 3.8))
for ax, pr, po, label in zip(axes, (prior_i0, prior_al), (post_i0, post_al),
(r"I$_0$(r) at 3 micron ($\int I_0\,r\,dr$ = flux)", r"$\alpha$(r)")):
ax.fill_between(rg, *band(pr), color="0.8", label="prior, 16-84%")
ax.fill_between(rg, *band(po), color="C0", alpha=0.5, label="posterior, 16-84%")
ax.set_xlabel("radius in the disk plane (mas)")
ax.set_ylabel(label)
axes[0].set_yscale("log")
axes[0].set_ylim(1e-6, 1e0)
axes[0].legend()
fig.suptitle("The data's effect on the GP profile and colour (MAP latents' Laplace posterior)")
plt.tight_layout()
plt.show()
Truth, parametric fit and deconvolution side by side

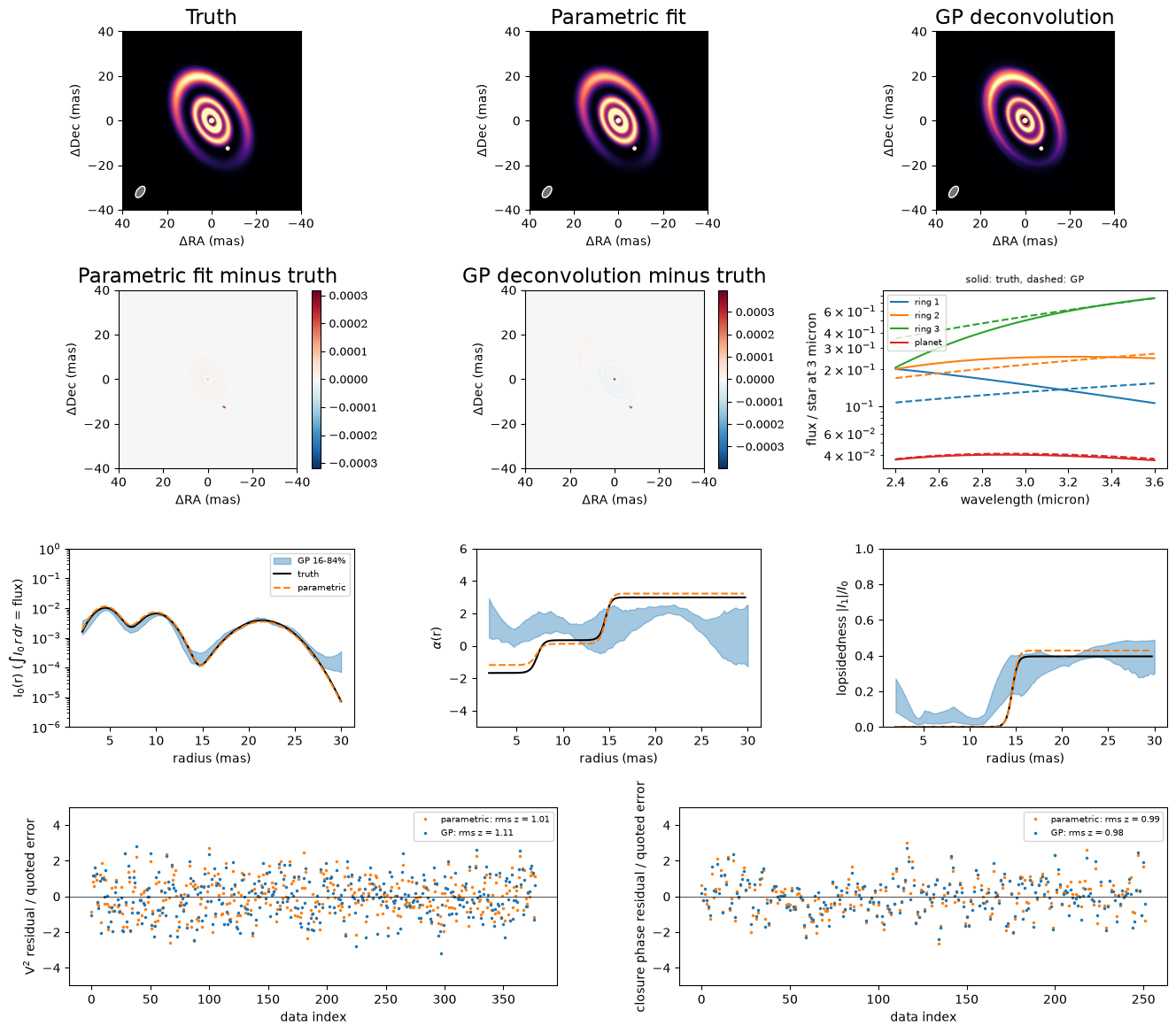

The top row of the figure shows the truth, the parametric fit and the Gaussian-process disk at 3 microns on one colour scale with the beam, and the second row shows the fits minus the truth as signed residuals. The third row compares the profile, the colour (the intensity-weighted slope of the three blackbodies at 3 microns) and the lopsidedness (the outer ring's first harmonic weighted by its share of the light) with the truth, using the blue bands from the Laplace posterior above. The spectra panel integrates the Gaussian-process disk over three radial windows, split at the truth's minima between the rings, against the blackbodies. The bottom row shows both fits' residuals over the quoted errors, with their root mean squares. The cell ends by printing the rms error of \(\ln I_0\) of each fitted profile against the truth, where the truth is within \(e^{-6}\) of its peak.
Look for a bump at each true ring radius and a minimum in the gap where the planet sits, a band that widens beyond the outer ring where the data are silent, and lopsidedness near the truth beyond the second ring. A power law in wavelength only approximates a blackbody over this band, as the dashed lines of the spectra panel show.
Code
par_model, bm = par.model, beam(data)
y, err = data.flatten_data()
n_vis = np.asarray(data.vis).size
lam = np.linspace(2.4e-6, 3.6e-6, 50)
alpha_of = lambda t: float(jax.grad(lambda l: jnp.log(BlackBody(1.0, t, W0)(l)))(W0) * W0)
def truth_profile(r, p):
"""I0(r) at 3 micron, the intensity-weighted alpha(r) and the harmonic |I_1|(r).
Each ring is exp[-(r - r_i)^2 / 2 s_i^2], as GaussianRing has it, normalized by
sqrt(2 pi) s_i r_i so that the integral of I0 r dr is the ring's flux (exact to
<0.1 percent here, where r_i >> s_i).
"""
g = [p[f"f{i}"] * np.exp(-0.5 * ((r - p[f"r{i}"]) / p[f"s{i}"]) ** 2)
/ (np.sqrt(2 * np.pi) * p[f"s{i}"] * p[f"r{i}"]) for i in (1, 2, 3)]
a = [alpha_of(p[f"t{i}"]) for i in (1, 2, 3)]
h3 = abs(np.asarray(Harmonics(re=p["h_re"], im=p["h_im"]).image_harmonics())[1])
tot = sum(g) + 1e-30
return sum(g), sum(gi * ai for gi, ai in zip(g, a)) / tot, h3 * g[2] / tot
fig = plt.figure(figsize=(16, 14))
grid = fig.add_gridspec(4, 6, hspace=0.45, wspace=1.5)
models = [(truth_model, "Truth"), (par_model, "Parametric fit"), (gpm, "GP deconvolution")]
for j, (m, name) in enumerate(models):
plot_model(m, fov_mas=FOV, npix=256, ax=fig.add_subplot(grid[0, 2 * j:2 * j + 2]),
saturate=0.99, beam=bm, title=name)
true_image = truth_model.render(npix=256, fov_mas=FOV)
for j, (m, name) in enumerate(models[1:]):
ax = plot_residual_map(np.asarray(m.render(npix=256, fov_mas=FOV) - true_image), FOV,
ax=fig.add_subplot(grid[1, 2 * j:2 * j + 2]),
title=f"{name} minus truth")
cbar = ax.images[0].colorbar # the title names the quantity; the bar's label collided with the spectra panel
cbar.set_label("")
cbar.ax.tick_params(labelsize=9)
ax = fig.add_subplot(grid[2, 0:2])
i_t, a_t, h_t = truth_profile(rg, truth)
i_p, a_p, h_p = truth_profile(rg, dict(par.values))
ax.fill_between(rg, *band(post_i0), color="C0", alpha=0.4, label="GP 16-84%")
ax.plot(rg, i_t, "k", label="truth")
ax.plot(rg, i_p, "C1--", label="parametric")
ax.set(yscale="log", ylim=(1e-6, 1e0), xlabel="radius (mas)", ylabel=r"I$_0$(r) ($\int I_0\,r\,dr$ = flux)")
ax.legend(fontsize=7)
ax = fig.add_subplot(grid[2, 2:4])
ax.fill_between(rg, *band(post_al), color="C0", alpha=0.4)
ax.plot(rg, np.where(i_t > 1e-3 * i_t.max(), a_t, np.nan), "k")
ax.plot(rg, np.where(i_p > 1e-3 * i_p.max(), a_p, np.nan), "C1--")
ax.set(xlabel="radius (mas)", ylabel=r"$\alpha$(r)", ylim=(-5, 6))
ax = fig.add_subplot(grid[2, 4:6])
ax.fill_between(rg, *band(post_h1), color="C0", alpha=0.4)
ax.plot(rg, np.where(i_t > 1e-3 * i_t.max(), h_t, np.nan), "k")
ax.plot(rg, np.where(i_p > 1e-3 * i_p.max(), h_p, np.nan), "C1--")
ax.set(xlabel="radius (mas)", ylabel=r"lopsidedness $|I_1|/I_0$", ylim=(0, 1))
ax = fig.add_subplot(grid[1, 4:6])
nodes, w = (np.asarray(x) for x in gpm.disk.profile.quadrature())
frac, al = w / w.sum(), np.asarray(gpm.disk.spectral_index(nodes))
# windows split at the minima of the true profile between the ring centres
cuts = []
for a, b in [(truth["r1"], truth["r2"]), (truth["r2"], truth["r3"])]:
inside = (rg > a) & (rg < b)
cuts.append(float(rg[inside][np.argmin(i_t[inside])]))
for i, (lo, hi) in enumerate([(0, cuts[0]), (cuts[0], cuts[1]), (cuts[1], 99)]):
inside = (nodes >= lo) & (nodes < hi)
f_gp = float(gpm.disk.flux) * (frac[inside, None] * (lam / W0) ** al[inside, None]).sum(0)
t_i = BlackBody(truth[f"f{i + 1}"], truth[f"t{i + 1}"], W0)(lam)
ax.plot(lam * 1e6, t_i, f"C{i}", label=f"ring {i + 1}")
ax.plot(lam * 1e6, f_gp, f"C{i}--")
ax.plot(lam * 1e6, BlackBody(truth["fp"], truth["tp"], W0)(lam), "C3", label="planet")
ax.plot(lam * 1e6, BlackBody(gv["planet.flux.ratio"], gv["planet.flux.temperature"], W0)(lam), "C3--")
ax.set(xlabel="wavelength (micron)", ylabel="flux / star at 3 micron", yscale="log")
ax.set_title("solid: truth, dashed: GP", fontsize=8)
ax.legend(fontsize=7)
for col, (sl, label) in enumerate([(slice(0, n_vis), r"V$^2$"), (slice(n_vis, None), "closure phase")]):
ax = fig.add_subplot(grid[3, 3 * col:3 * col + 3])
for m, name, c in [(par_model, "parametric", "C1"), (gpm, "GP", "C0")]:
z = np.asarray(data.residuals(data.model(m)))[sl] / err[sl]
ax.plot(z, ".", ms=3, color=c, label=f"{name}: rms z = {np.sqrt(np.mean(z**2)):.2f}")
ax.axhline(0, color="k", lw=0.5)
ax.set(xlabel="data index", ylabel=f"{label} residual / quoted error", ylim=(-5, 5))
ax.legend(fontsize=7, loc="upper right")
plt.show()
i_map = np.asarray(profile_alpha(flat0)[0])
near = i_t > i_t.max() * np.exp(-6)
rms_ln = lambda i: np.sqrt(np.mean((np.log(i[near]) - np.log(i_t[near])) ** 2))
print(f"rms error of ln I0 over {rg[near].min():.1f}-{rg[near].max():.1f} mas "
f"(truth within e^-6 of its peak): GP {rms_ln(i_map):.2f}, parametric {rms_ln(i_p):.2f}")
rms error of ln I0 over 2.0-29.0 mas (truth within e^-6 of its peak): GP 0.33, parametric 0.10
The multipole field prior

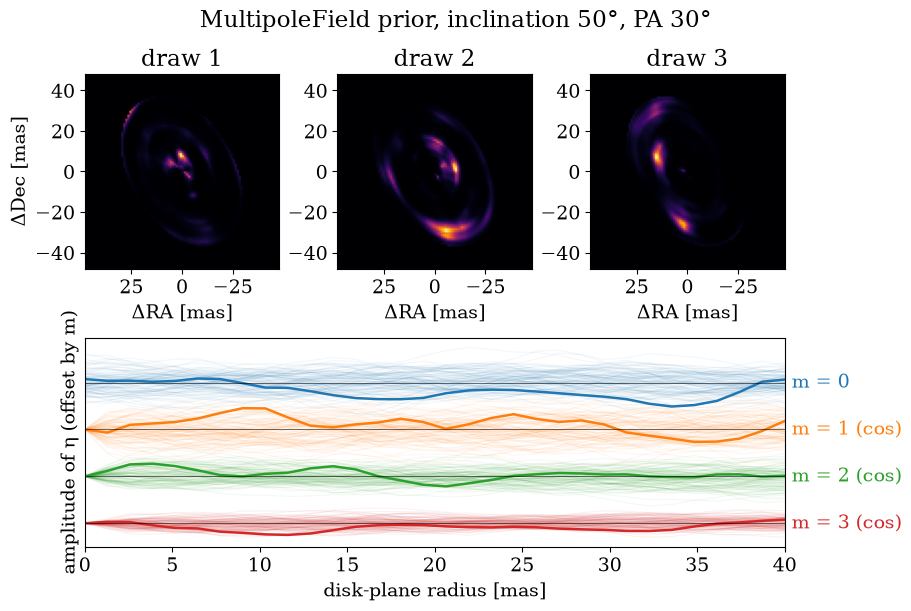

A MultipoleField is the same Gaussian-process idea on a polar grid in the disk's frame, here inclined 50° at position angle 30°. It is a residual that follows the disk's geometry. The top row shows three prior draws. The bottom shows the field's azimuthal Fourier coefficients: the cosine amplitude \(a_m(r)\) of each harmonic \(m = 0, \dots, 3\) in \(\eta = \sum_m a_m \cos m\theta + b_m \sin m\theta\), against disk-plane radius, each on its own offset track (the \(m = 0\) coefficient is the azimuthal mean). Every harmonic is a smooth function of radius with correlation length \(\ell_r\). At the centre the \(m \geq 1\) harmonics are tapered to zero, as \(\tanh^m(r/\Delta r)\) with \(\Delta r\) the radial node spacing, so that the field has a single value at the origin; this is why those tracks pinch to zero at \(r = 0\). Higher harmonics have smaller amplitudes, with a scale set by \(\ell_\theta\).
import jax
import jax.numpy as np
import matplotlib.pyplot as plt
from virgil.fields import MultipoleField
from virgil.plotting import plot_field_draws
prior = MultipoleField(np.zeros((32, 64)), image_shape=(96, 96), r_max_mas=40.0, sigma=2.0, length_r=6.0, length_theta=0.8, inc=50.0, pa=30.0)
plot_field_draws(prior, 1.0, jax.random.PRNGKey(3), n=300, title="MultipoleField prior, inclination 50°, PA 30°")
plt.show()

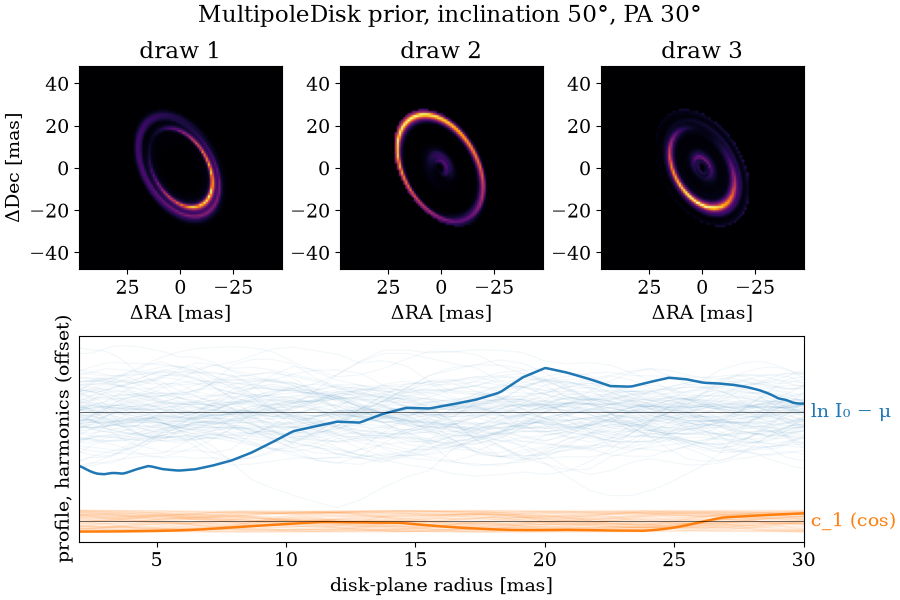

The same plot accepts a MultipoleDisk with a RadialGP profile. Here are prior draws from the hyperparameters of the fit above (a Gaussian-process profile and first-order harmonics, \(\ell = 5\) mas, the same inclination and position angle as the field). The bottom panel shows the profile, \(\ln I_0(r)\) (the \(m = 0\) track), and the cosine coefficient \(c_1(r)\) of the first harmonic, each offset on its own track. For posterior draws, pass latents={"profile.z": ..., "harmonics.z": ...}. We show only the prior: the Laplace draws above come from a fit that this page does not rerun.
from virgil.models import Harmonics, MultipoleDisk, MultipoleKernel, RadialGP
disk = MultipoleDisk(
RadialGP(2.0, 30.0, sigma=2.0, ell=5.0),
harmonics=Harmonics(degree=1, prior=MultipoleKernel(ell_r=5.0, ell_theta=8.0, sigma=0.5, n=10)),
inc=50.0, pa=30.0, n_r=48,
)
plot_field_draws(disk, 1.0, jax.random.PRNGKey(3), n=300, npix=96, title="MultipoleDisk prior, inclination 50°, PA 30°")
plt.show()
Summary
A non-parametric MultipoleDisk fits the same data as the parametric family without being told there are three rings: its profile, colour and lopsidedness are Gaussian processes, and only the planet keeps its parametric form. It reaches a \(\chi^2/N\) close to that of the family that made the data and recovers the planet's position and flux. It pays for its freedom with a less accurate profile (a larger rms error of \(\ln I_0\) against the truth; both are printed above). The profile's length scale is a prior choice, since the two evidences differ by only a couple of nat; structure finer than the 2 to 3 mas half-fringe is not constrained in either fit; and the Laplace \(\log Z\) comparison with the parametric model is only indicative.
For real data, use the two together: the Gaussian process to find structure and propose a parametric family, then the parametric fit and its evidence to confirm and measure it. Sampling the hyperparameters with NUTS is the natural next step and is not done here.
As a pipeline
Both fits above can be run with DiskPipeline, which is provisional. It fixes the order of the steps and writes a run folder that reloads without recomputing. The simulated data are its load stage. A grid over the inclination and position angle with a single ring, then a fit of that ring, is its geometry stage; the geometry it finds is the starting point of the parametric fit and the geometry that the Gaussian process holds. The profile and compare stages fit the model and choose among its variants. model="rings" adds Gaussian rings, each sharing the inclination and position angle, until the BIC stops improving (a count with two rings closer than twice the narrower one's width, or a half-fringe, is left out, and a ring whose removal lowers the BIC is dropped), and keeps the count of least BIC. model="gp" (the default) fits a RadialGP profile with Harmonics of degree one and a spectral index that is itself a Gaussian process, at each length scale of a grid, and keeps the length of largest Laplace evidence. The cell below sets only this notebook's choices: the 6000 K blackbody star, the 3 micron reference wavelength, an outer radius of 30 mas (the default is half the field of view, which cuts through the outer ring at 21.5 mas), and the companion search, which is off by default. The length-scale grid is \(\ell/\sqrt{3}\) of 0.5, 1 and 2 half-fringes of the longest baseline, so, for the half-fringe of 1.9 mas here, \(\ell\) is about 1.65, 3.3 and 6.6 mas, which brackets the 2 and 5 mas used above. The smallest, 0.5 half-fringe, is the pipeline's floor: a shorter length gives bead-like images that fit with \(\chi^2/N\) far under 1. Neither run samples: posterior=True would run NUTS with the geometry released.
The pipelines find the rings and the planet without being told how many or where. Their priors are the pipeline's group-invariant ones (a flux, radius and width are log-uniform, the inclination is uniform in \(\cos i\), the position angle an angle vector), and each ring's colour is a power law in wavelength, which only approximates the blackbodies that made the data. So the numbers agree with the hand-written fits to within the Laplace uncertainties, not exactly. Each run reports \(\chi^2/N\) on the quoted errors as the first check. The Gaussian-process run's length_scale check warns that its best \(\ell\) is the lowest of the grid, at the pipeline's floor, so the data prefer the smallest length allowed and do not measure it, as in the evidence comparison above.
from tempfile import mkdtemp
from virgil.pipeline import DiskPipeline
settings = dict(
r_out_mas=30.0,
star_temperature_k=6000.0,
wavel0_m=W0,
companion=True,
max_rings=4,
ell_halffringes=[0.5, 1.0, 2.0],
quicklook_execute=False,
)
# The rings are blackbodies here, so give the rings model that colour law (the
# default, a power-law index per ring, cannot follow a blackbody across the band).
rings_res = DiskPipeline(
data, "rings", output=f"{mkdtemp()}/rings_run", ring_colour="blackbody",
**settings
).run()
gp_res = DiskPipeline(
data, "gp", output=f"{mkdtemp()}/gp_run", **settings
).run()
print(rings_res.describe())
print()
print(gp_res.describe())
DiskPipeline run in /tmp/tmpk3u3kto3/rings_run: complete
data.n_vis = 378
data.n_phi = 252
data.n_independent = 567
data.wavel_min_m = 2.4e-06
data.wavel_max_m = 3.6e-06
data.baseline_min_m = 34.1699
data.baseline_max_m = 130.068
data.resolution_mas = 1.90299
data.fov_mas = 21.7312
model.resolution_mas = 1.90299
model.r_in_mas = 1.90299
model.r_out_mas = 30
model.n_r_rings = 32
model.n_r_gp = 72
model.n_channels = 9
model.wavel0_m = 3e-06
geometry.inc_deg = 59.8073
geometry.pa_deg = 107.725
geometry.r_mas = 19.0666
geometry.sigma_mas = 4.26434
geometry.flux = 0.880331
geometry.chi2_reduced = 55.6727
geometry.gp_sigma = 0.788052
chi2.n_independent = 567
disk.n_rings = 3
disk.inc_deg = 50.1075
disk.pa_deg = 29.9613
[pass] chi2_reduced: χ²/N = 1.01 for the Gaussian rings fit on quoted errors: consistent with the quoted errors.
[warn] ring_count: With 3 rings: ring 1, 3 is narrower than the half-fringe, so its width is not resolved.
[pass] outer_edge: 0.17 per cent of the light is within one half-fringe of the outer edge.
[pass] inclination: Inclination 50.1° with a single minimum of the geometry grid.
[pass] absorbed_companion: No significant point source remains in the residuals (Δχ² = 12.2).
[pass] at_bound: No fitted parameter sits at a prior bound.
DiskPipeline run in /tmp/tmp2i4id96b/gp_run: complete
data.n_vis = 378
data.n_phi = 252
data.n_independent = 567
data.wavel_min_m = 2.4e-06
data.wavel_max_m = 3.6e-06
data.baseline_min_m = 34.1699
data.baseline_max_m = 130.068
data.resolution_mas = 1.90299
data.fov_mas = 21.7312
model.resolution_mas = 1.90299
model.r_in_mas = 1.90299
model.r_out_mas = 30
model.n_r_rings = 32
model.n_r_gp = 72
model.n_channels = 9
model.wavel0_m = 3e-06
geometry.inc_deg = 59.8073
geometry.pa_deg = 107.725
geometry.r_mas = 19.0666
geometry.sigma_mas = 4.26434
geometry.flux = 0.880331
geometry.chi2_reduced = 55.6727
geometry.gp_sigma = 0.788052
chi2.n_independent = 567
chi2.error_scale_factor = 1.1164
disk.ell_mas = 1.64804
disk.flux = 0.890811
disk.inc_deg = 49.8094
disk.pa_deg = 30.6551
[pass] chi2_reduced: χ²/N = 1.17 for the Gaussian-process disk fit on quoted errors: consistent with the quoted errors.
[pass] error_scale: Estimated error scales mackay = 1.12: close to the quoted errors.
[warn] length_scale: The best ℓ is the lowest of the grid and the grid could not be extended that way (best ℓ = 1.65 mas, a squared-exponential length of 0.951 mas, 0.5× the half-fringe): the grid chose its own edge, so ℓ is not measured. The floor ell_floor_halffringes stops a smaller ℓ (below a pixel a small ℓ gives beads with χ²/N far under 1): treat the data as not resolving the structure.
[pass] structure_unconstrained: The radial profile is stable across ℓ (smallest correlation 0.9) or the evidence separates the lengths.
[pass] inner_edge: 2.2 per cent of the light is within one half-fringe of the inner edge (correlation with the flux 0.45).
[warn] outer_edge: 1.7 per cent of the model's light lies within one half-fringe (1.9 mas) of its outer edge: light beyond it cannot be placed. Refit with a larger r_out_mas.
[pass] inclination: Inclination 49.8° with a single minimum of the geometry grid.
[pass] absorbed_companion: No significant point source remains in the residuals (Δχ² = 9.61).
[pass] render_consistency: On the reference channel with the disk's colour removed, on the rescaled errors if any (not the summary's χ²/N): χ²/N is 0.821 for the model and 0.82 for its rendered image.
[pass] at_bound: No fitted parameter sits at a prior bound.
[warn] stage_warnings: 1 warning(s) were raised inside the stages: fit(method='lm') did not converge in 25 steps, the step limit; raise max_steps.. See the 'warnings' list of summary.json.
1 warning(s) recorded in the profile stage(s) (see the checks, or Result.summary['warnings'])

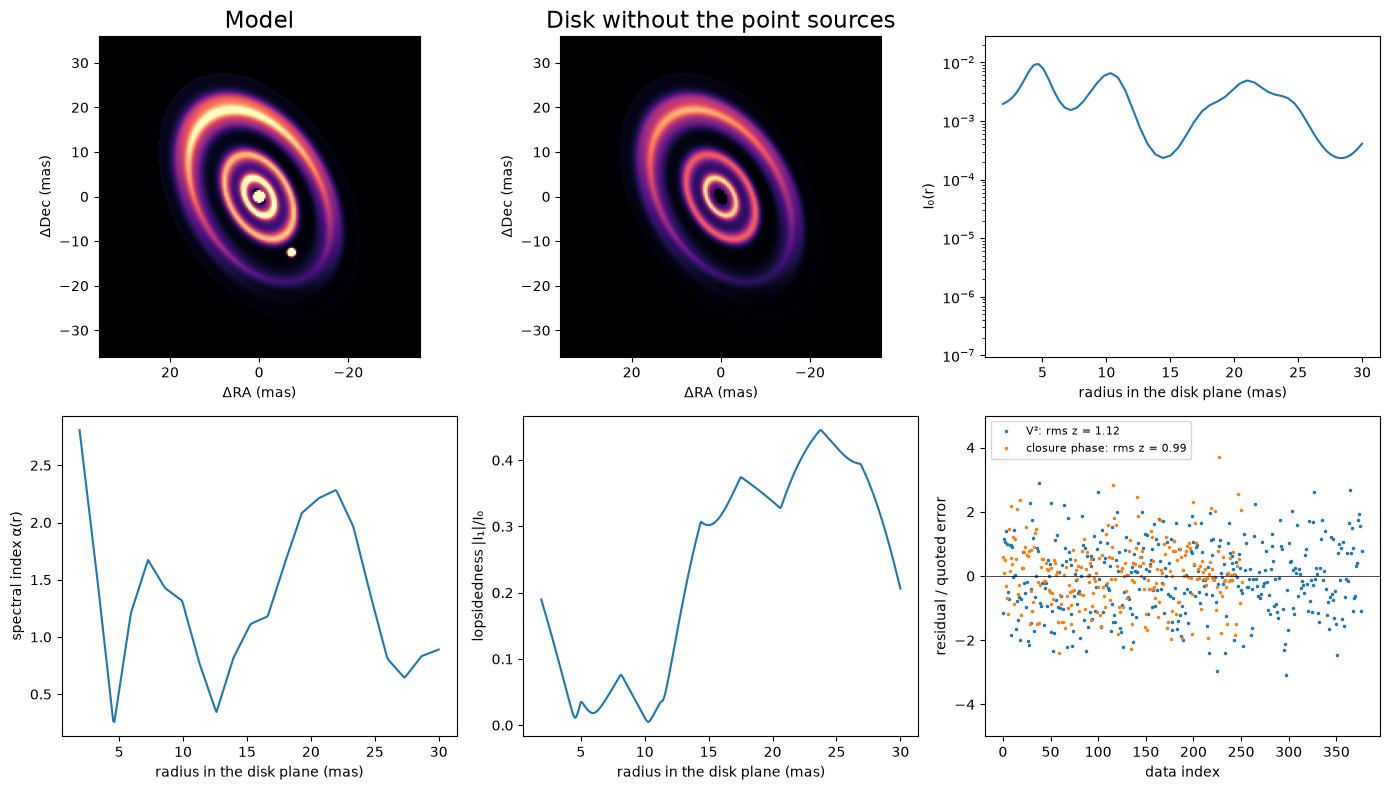

from virgil.pipeline.disk import plot_summary
plot_summary(gp_res.model(), data, r_out_mas=30.0, r_in_mas=gp_res.summary["model"]["r_in_mas"])
plt.show()
